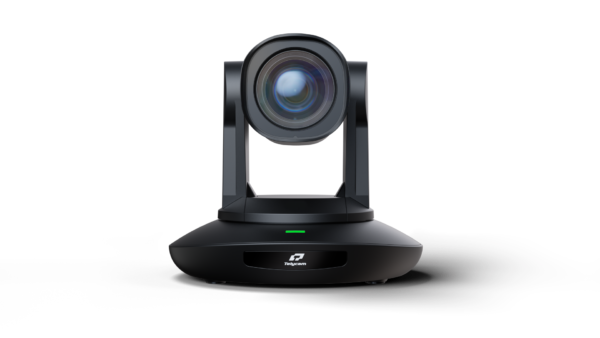

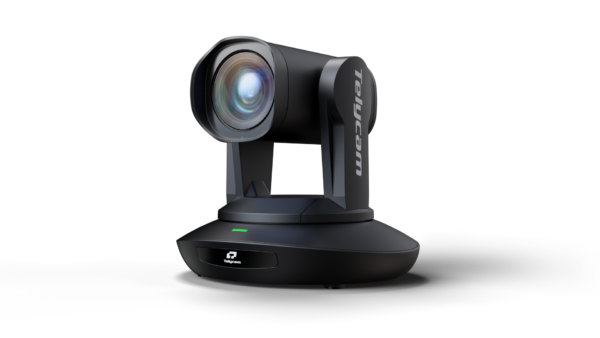

Telycam Vision+ N3 NDI Auto Tracking & Live Streaming PTZ Camera with 30x Optical Zoom (Black)

$4213914

Telycam Vision+ N3 NDI Auto Tracking & Live Streaming PTZ Camera with 30x Optical Zoom

1 disponibles

SKU: VP300-30-B Categorías: , Etiqueta:

Conectividad total

La Vision+ N3 ofrece salidas NDI®HX3, 3G-SDI, HDMI y USB 2.0, permitiendo emitir imágenes simultáneamente según las necesidades de tu flujo de trabajo.

3G-SDI y HDMI: ideales para producciones profesionales en vivo.

USB 2.0: funciona como una cámara web de alta gama, perfecta para streaming o videoconferencias de calidad superior.

Integración con entornos virtuales – Tecnología FreeD

La compatibilidad nativa con el protocolo FreeD permite transmitir datos de Pan, Tilt, Zoom y Focus (PTZF) con precisión milimétrica hacia sistemas de seguimiento virtual.
Totalmente compatible con las principales plataformas del mercado —Brainstorm, Vizrt, Zero Density, Aximmetry, Unreal Engine y VSet3D—, Vision+ N3 facilita producciones inmersivas y dinámicas tanto en entornos reales como virtuales.
Luces indicadoras integradas (Tally)

La serie Vision+ N3 incorpora luces tally compatibles con NDI, que se iluminan automáticamente para indicar el estado de la cámara:

Rojo: cámara activa al aire (Programa)

Verde: cámara en espera (Vista previa)
Todo sin necesidad de sistemas de control adicionales, garantizando una producción ágil y sin errores.

Audio profesional sincronizado

Su entrada de línea estéreo de 3,5 mm permite conectar fuentes de audio externas para lograr un sonido claro, sincronizado y de calidad profesional, ofreciendo la flexibilidad necesaria para transmisiones y grabaciones exigentes.

Configuración sencilla con SSDP

La configuración de la cámara es rápida y sin complicaciones gracias a la integración con SSDP, que detecta automáticamente la dirección IP en redes locales. Ideal para producciones multicámara: solo conectá la cámara por Ethernet y comenzá a trabajar.

Seguimiento automático con IA

El sistema de auto-tracking inteligente basado en inteligencia artificial sigue de manera precisa a los sujetos en movimiento, asegurando una experiencia de producción fluida, natural y sin intervención manual.

Especificaciones

Key Specs

Image Sensor
1/1.28″-Type CMOS
Sensor Resolution
Actual: 2.4 Megapixel
Effective: 2 Megapixel
Shutter Speed
1/10000 to 1/30 Second
Max Optical Zoom
30x
Video Output
HDMI
HD (1920 x 1080p) at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
HD (1920 x 1080i) at 50/59.94/60.00 fps
HD (1280 x 720) at 25/29.97/30.00/50/59.94/60.00 fps
RJ45
HD (1920 x 1080p) up to 60.00 fps
HD (1280 x 720) up to 60.00 fps
HD (1024 x 576p) up to 60.00 fps
640 x 360 up to 30.00 fps
SDI/BNC
HD (1920 x 1080p) at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
HD (1920 x 1080i) at 50/59.94/60.00 fps
HD (1280 x 720) at 25/29.97/30.00/50/59.94/60.00 fps
USB
HD (1920 x 1080p) up to 60.00 fps
HD (1280 x 720) up to 60.00 fps
HD (1024 x 576p) up to 60.00 fps
HD (800 x 448) up to 60.00 fps

Broadcast Output
NTSC/PAL
IP Streaming
H.264/H.265 via NDI/HTTP/SRT/RTSP/RTMP/ONVIF/NDI HX3/UVC/UAC
800 x 448 to 1920 x 1080 up to 60p
PoE Support
PoE+ 802.3at
Mounting
1x 1/4″-20 Female for Bracket
1x 3/8″-16 Female for Bracket
Imaging
Image Sensor
1/1.28″-Type CMOS
Horizontal Resolution (TV Lines)
1080 TV Lines
Sensor Resolution
Actual: 2.4 Megapixel
Effective: 2 Megapixel
Focus Control
Autofocus
Manual Focus
Exposure Control
Shutter Speed
1/10000 to 1/30 Second
Signal-to-Noise Ratio
50 dB
Minimum Illumination
0.5 Lux
Flip / Mirror Support
Image Flip, Mirror (Vertical)
White Balance
Presets: Auto, Color Temperature, Indoors, Manual, One Push, Outdoors
Lens
Max Optical Zoom
30x
Maximum Aperture
f/1.8 to 3.6
Video Capture
Video Output
HDMI
HD (1920 x 1080p) at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
HD (1920 x 1080i) at 50/59.94/60.00 fps
HD (1280 x 720) at 25/29.97/30.00/50/59.94/60.00 fps
RJ45
HD (1920 x 1080p) up to 60.00 fps
HD (1280 x 720) up to 60.00 fps
HD (1024 x 576p) up to 60.00 fps
640 x 360 up to 30.00 fps
SDI/BNC
HD (1920 x 1080p) at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
HD (1920 x 1080i) at 50/59.94/60.00 fps
HD (1280 x 720) at 25/29.97/30.00/50/59.94/60.00 fps
USB
HD (1920 x 1080p) up to 60.00 fps
HD (1280 x 720) up to 60.00 fps
HD (1024 x 576p) up to 60.00 fps
HD (800 x 448) up to 60.00 fps
Embedded Audio
HDMI/NDI/SDI/USB
Audio Recording
Yes
Broadcast Output
NTSC/PAL
IP Streaming
H.264/H.265 via NDI/HTTP/SRT/RTSP/RTMP/ONVIF/NDI HX3/UVC/UAC
800 x 448 to 1920 x 1080 up to 60p
Control
Presets
128 via RS-232, VISCA
10 via IR
Pan/Tilt
Pan: 340° (-170 to 170°) at 0.1 to 80°/s
Tilt: 120° (-30 to 90°) at 0.1 to 60°/s
Tally Light
Yes
Interface
Video I/O
1x RJ45 (NDI) Output
1x HDMI 2.0 Output
1x BNC (3G-SDI) Output
1x USB-C 3.0 / 3.1/3.2 Gen 1 Output
Audio I/O
2x 1/8″ / 3.5 mm TRS Stereo Line Input
Other I/O
1x RJ45 (LAN) Control (Shared with Video Output)
Built-In Microphone
No
Built-In Speaker
No
Power
PoE Support
PoE+ 802.3at
Power I/O
1x Barrel (12VDC) Input
Environmental
Operating Conditions
14 to 122°F / -10 to 50°C up to80% Humidity
Impact Resistance
No
Environmental Resistance
No

¿QUE HAY EN LA CAJA?

  • Telycam Vision+ N3 NDI Auto Tracking & Live Streaming PTZ Camera with 30x Optical Zoom (Black)

Manual de usuario

Vision+ N3 30X Manual
